Different types of Stern Gear

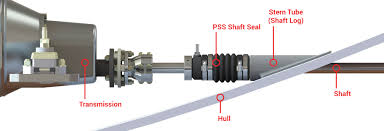

The stern gear is located in the rear of the hull below the water line. The propeller shaft links the propeller via the stern gear and bearings, so that the rotating motion of the engine via the gear box can be converted into thrust to propel the boat. The propeller shaft is supported by a bearing arrangement which acts as an intermediate phase between the canal water and the boat.

The stern tube passes through the lower part of the hull of the vessel so carrying the shaft, and connecting it to the propeller and bearings.  The lubrication arrangement and most importantly the sealing arrangements can vary in different types of narrowboat sterns. The stern tube bearing arrangement and sealing plays a vital part in the vessel's operation.



Conventional Stern Gear.

These consist of a Stuffing box, central tube (also called the centre bearing) are used around the propeller shaft at the point where the boat's hull is underwater. Rings of soft packing material are placed in the stuffing box around the shaft. When the gland nuts are tightened up on the stuffing box the packing forms a water tight seal, while allowing the propeller shaft to rotate. Various materials can be used for the packing, flax, hemp and cotton. More modern materials are now used which have graphite or Teflon in. Packing rope are often impregnated with grease or PTFE lubricants.







Water lubricated

This is probably the simplest of the seal designs. It consists of a rubber ring, with a lipped profile supported by a spring, contained in a housing. The rubber lip seal runs on the shaft to form the seal.This seal is generally used on: Pleasure craft. Light duty, low pressure sealing, where low cost is required.It requires little attention other than ensuring that a water supply is maintained during operation. It only requires a very small amount of special grease applying via the grease nipple every 300 hours.

There is generally no back up for the seal in case of failure. there is no requirement for an additional "back-up" seal. The seal needs replacing at shorter intervals than the other seals to be safe and, prevent a "drippy" stern gear.





The disadvantage is the ring gradually wears a groove in the shaft and so a replaceable liner sleeve is recommended.





The rear bearing on the drive shaft which goes through the hull of a vessel, is usually made of brass with an inner grooved rubber lining that is lubricated by the surrounding water entering the grooves as it rotates.

When you replace a drive shaft on your boat, it is also a good idea to replace the cutlass bearing and lip seal.

Happy cruising from all at Venetian Marina.
